Rof Electro-optic modulator 1550nm AM Series Intensity Modulator 40G
endri-javatra
* Fatiantoka ambany kely
* Bandwidth avo
* Volavolan'ny onja antsasaka ambany
* Safidy fanamboarana
Fampiharana
⚫ rafitra ROF
⚫ Fizarana fanalahidy Quantum
⚫ Rafitra fandrefesana laser
⚫ Modulation amin'ny sisiny
| Rof-Série AM | Rof-AM-07 | Rof-AM-08 | Rof-AM-10 | Rof-AM-13 | Rof-AM-15 | |||
| Ny halavan'ny onjam miasa | 780nm | 850nm | 1064nm | 1310nm | 1550nm | |||
| passante | 10GHz | 10GHz | 10/20GHz | 2.5GHz | 50GHz | 10GHz | 20GHz | 40GHz |
| Fatiantoka fampidirana | <5dB | <5dB | ＜5dB | ＜5dB | ＜4dB | |||
| Taham-pahafatesana @DC | ＞20dB | ＞20dB | ＞20dB | ＞20dB | ＞20dB | |||
| VΠ @RF (1KHz) | <3V | <3V | <4V | <3.5V | ＜6V | <5V | ||
| VΠ @Biasa | ＜3.5V | ＜3.5V | <5V | <5V | <8V | <7V | ||
Fampahalalana momba ny baiko
| Rof | AM | XX | XXG | XX | XX | XX |
| Karazana: AM --- Intensity Modulator | Halavany onja: 07---780nm 10---1060nm 13---1310nm 15---1550nm | Bandwidth: 10GHz 20GHz 40GHz 50GHz
| Monitor PD: PD --- Miaraka amin'ny PD | In-Out karazana fibre: PP---PM/PM
| Optical connector: FA---FC/APC FP---FC/PC SP---Customization |
R-AM-15-40G
Wavalength 1550nm 40GHz Intensity modulator
| fikirana | marika famantarana | Min | Typ | Max | Unit | ||||
| Optical paramètre | |||||||||
| Ny halavan'ny onjam miasa | l | 1530 | 1550 | 1565 | nm | ||||
| Fatiantoka fampidirana | IL | 4 | 5 | dB | |||||
| Optical fiverenana very | ORL | -45 | dB | ||||||
| Avereno ny tahan'ny fandringanana @DC | ER@DC | 20 | 23 | 45 | dB | ||||
| tahan'ny lany tamingana | DER | 13 | dB | ||||||
| Fibre optique | fahan'nyseranana | Panda PM Fujikura SM | |||||||
| seranana mivoaka | Panda PM Fujikura SM | ||||||||
| Optical fibre interface tsara | FC / PC, FC / APC Na mpampiasa hamaritra | ||||||||
| Parameter elektrika | |||||||||
| Bandwidth miasa(-3dB) | S21 | 28 | 30 | GHz | |||||
| Volavolan'ny antsasaky ny onja Vpi | RF | @50KHz |
| 4.5 | 5 | V | |||
| fitongilanana | @Biasa |
| 6 | 7 | V | ||||
| Fatiantoka miverina amin'ny herinaratra | S11 | -12 | -10 | dB | |||||
| Impedance fampidirana | RF | ZRF | 50 | W | |||||
| fitongilanana | Zfitongilanana | 1M | W | ||||||
| Interface elektrika | V(f) | ||||||||
Fepetra fetra
| fikirana | marika famantarana | Unit | Min | Typ | Max |
| Input hery optique | Pao, Max | dBm | 20 | ||
| Input hery RF | dBm | 28 | |||
| fitongilanana malefaka | Vbias | V | -15 | 15 | |
| Temperature miasa | Top | ℃ | -10 | 60 | |
| mari-pana fitahirizana | Tst | ℃ | -40 | 85 | |
| Hamandoana | RH | % | 5 | 90 |

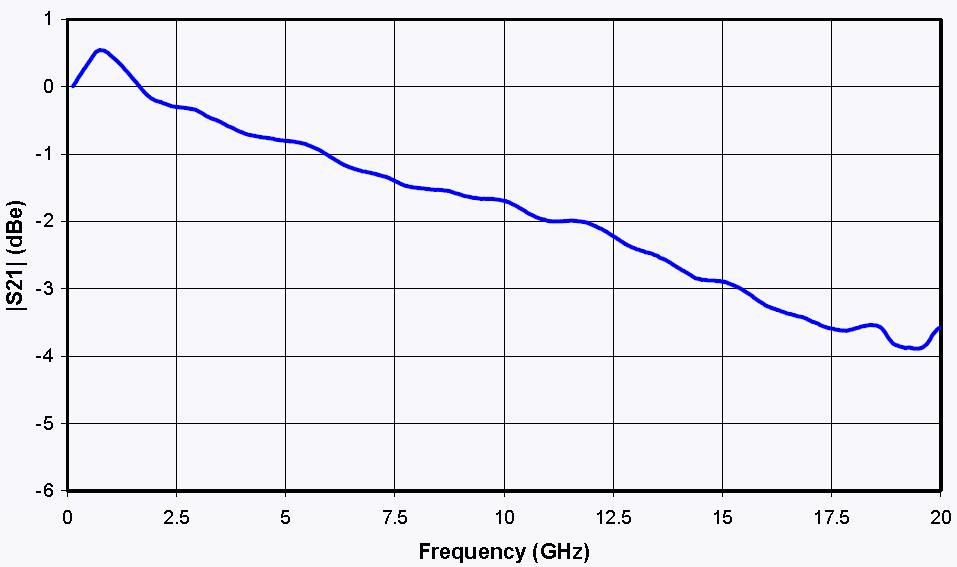

S21 Curve
&S11 Curve
S21 sy s11 curve
Diagrama mekanika
| PORT | marika famantarana | Fanamarihana |
| In | Optical fidirana seranana | Fibre PM (125μm/250μm) |
| avy | Optical Output seranan-tsambo | PM sy SMF safidy |
| RF | RF fidirana port | SMA(f) |
| fitongilanana | Port fanaraha-maso mitongilana | 1,2 Fitongilanana, 34-N/C |
